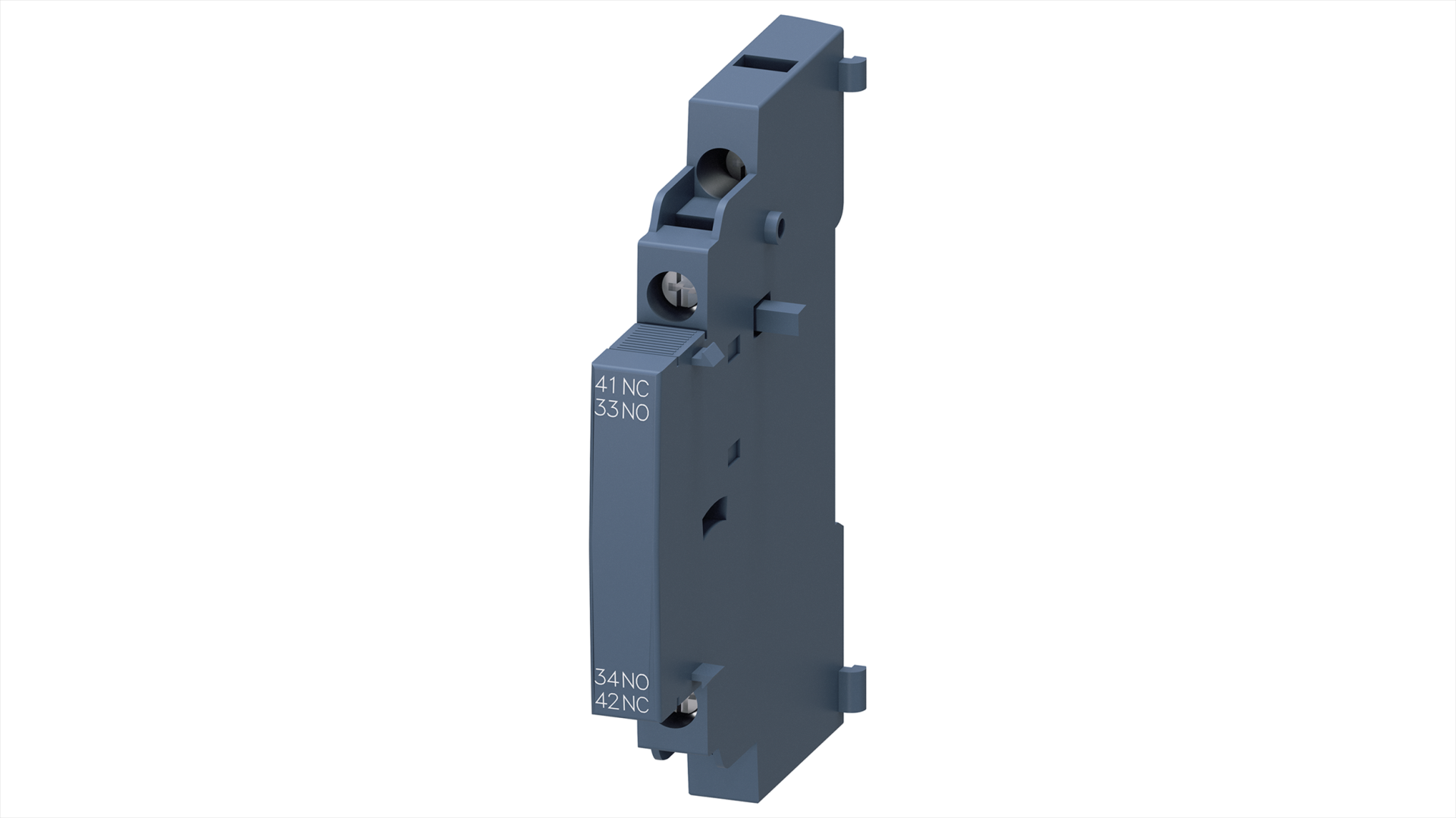

3RV2901-1A§Auxiliary switch can be mounted on the side 1 NO+1 NC screw terminal for circuit breaker 3RV2
產品類型: Auxiliary Switch 輔助接點
Number of contacts: 2
Input voltage: 690 V
安裝類型: Plug In Mount

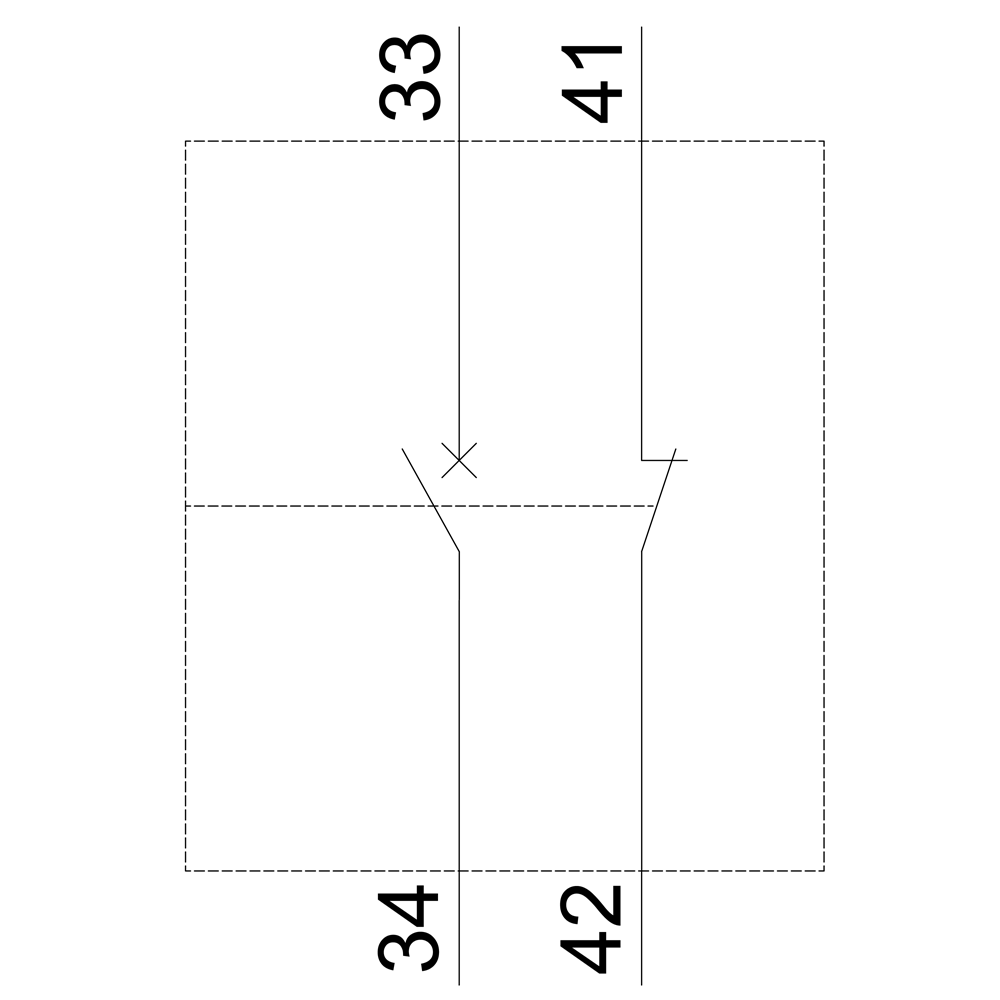

接點設定: 1NO;1NC
異物防護等級: IP20
搭配使用: Circuit Breaker 3RV2
終端類型: Screw

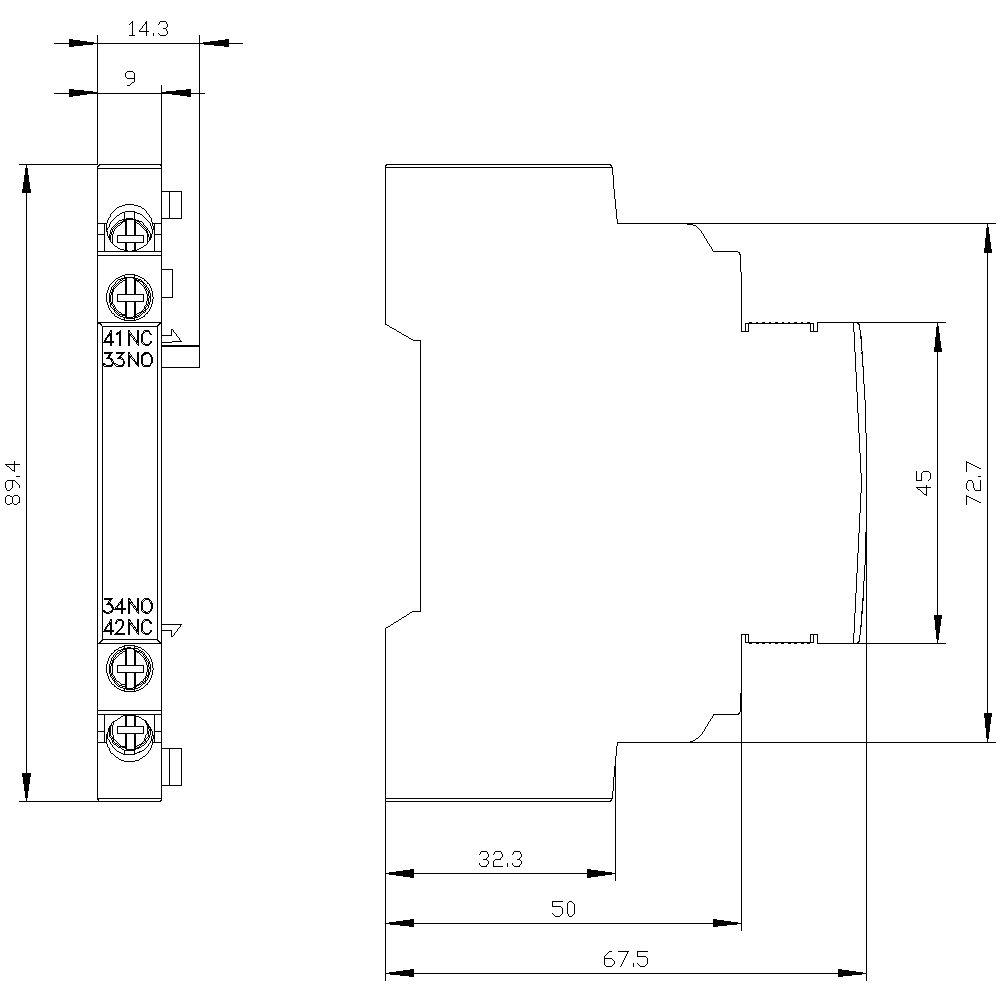

尺寸: 9.5 x 70 x 90 mm
最高操作溫度: +60 °C
最低操作溫度: -20 °C
