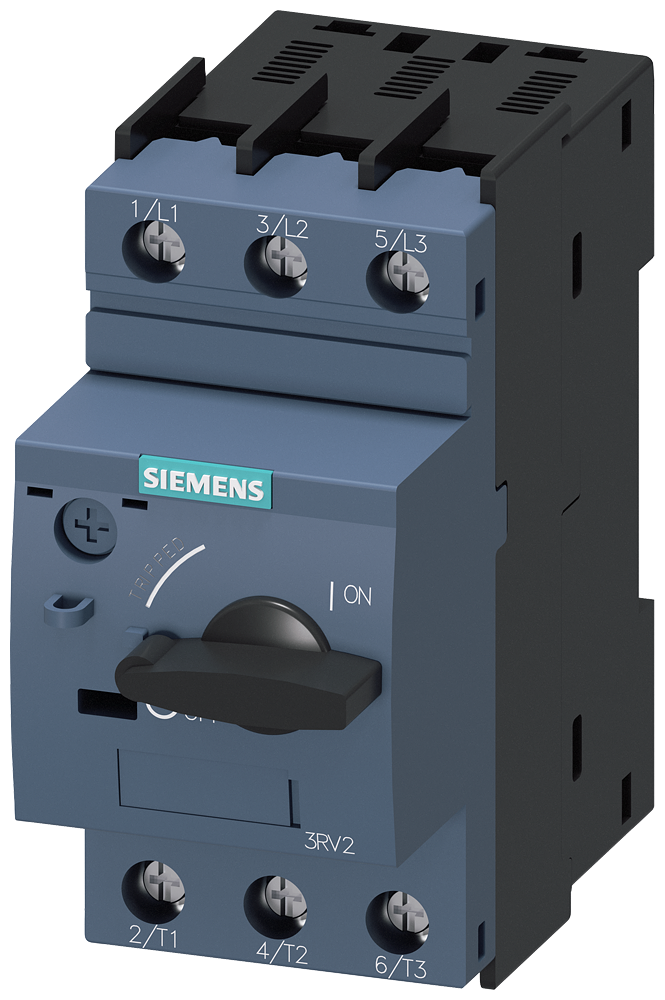

3RV2021-1GA10§Circuit breaker size S0 for motor protection, CLASS 10 A-release 4.5...6.3 A N-release 82 A screw terminal Standard switching capacity
極數: 3
\T電壓額定值: 690 V ac
安裝類型: DIN Rail Mount
Breaking capacity: 4 kA
Terminal contact type: Screw
Tripping mechanism: Magnetic Trip
Reset actuator type: Handle
Tripping characteristics: Class 10
工作溫度範圍: -20 to +60 °C

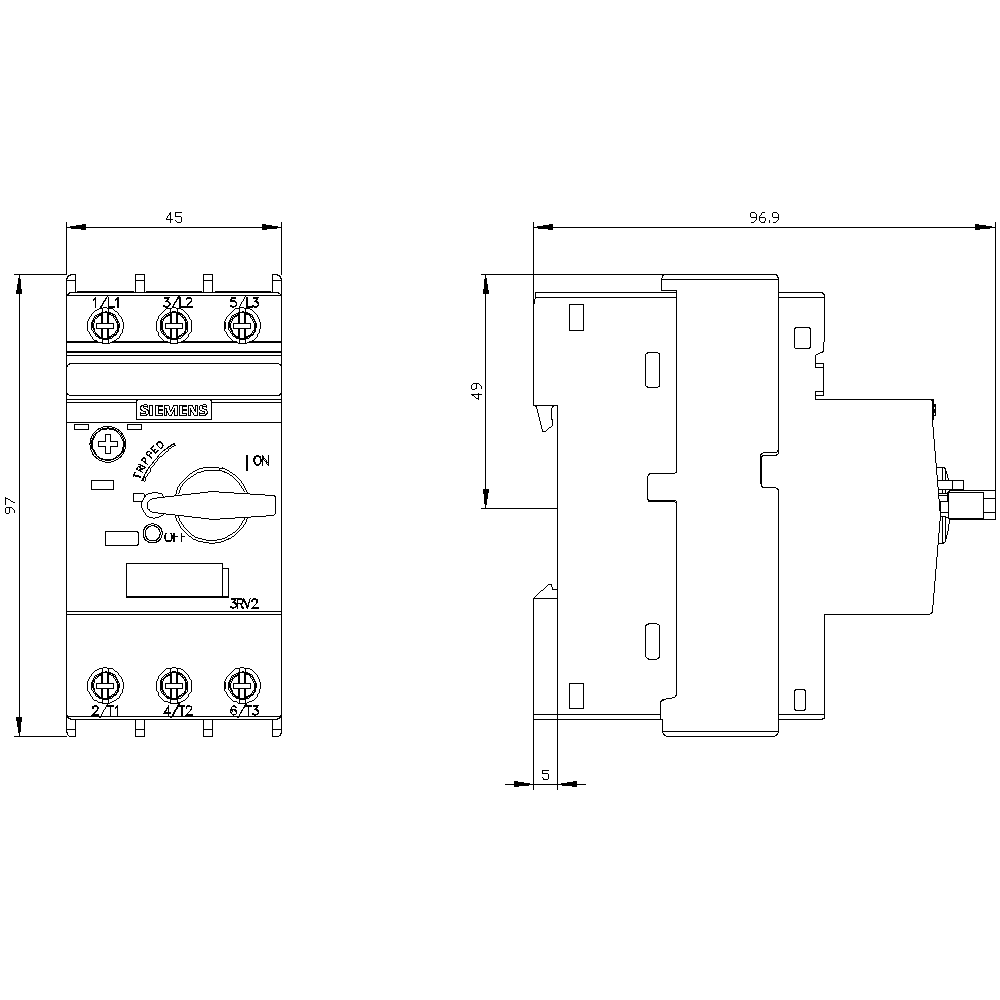

尺寸: 45 x 96.9 x 97 mm
