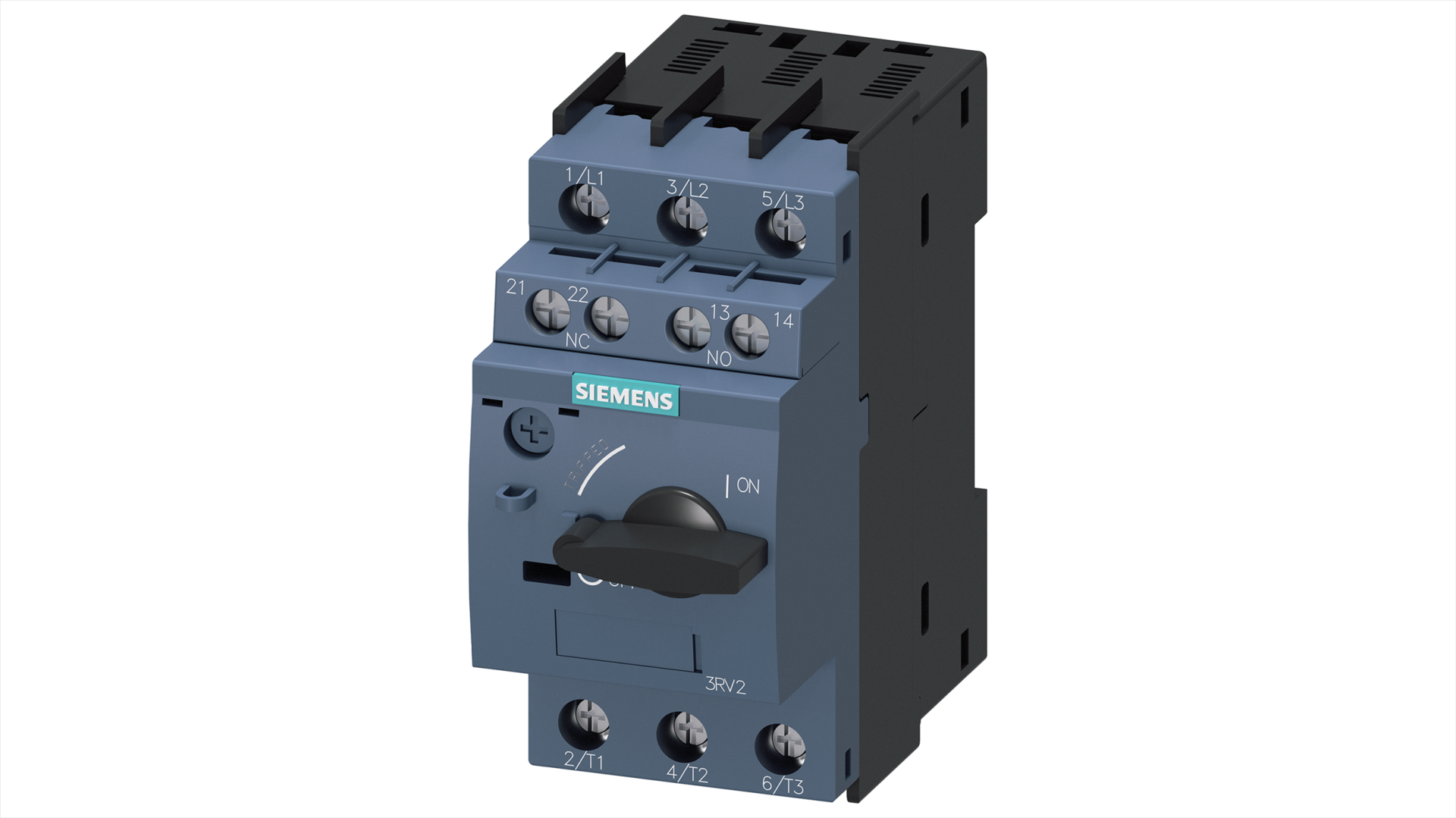

3RV2011-1EA15§Circuit breaker size S00 for motor protection, CLASS 10 A-release 2.8...4 A N release 52 A screw terminal Standard switching capacity with transverse auxiliary switches 1 NO+1 NC
極數: 3
\T電壓額定值: 690 V ac
安裝類型: DIN Rail Mount
Breaking capacity: 4 kA
Terminal contact type: Screw
Tripping mechanism: Magnetic Trip
Reset actuator type: Handle
Tripping characteristics: Class 10
工作溫度範圍: -20 to +60 °C

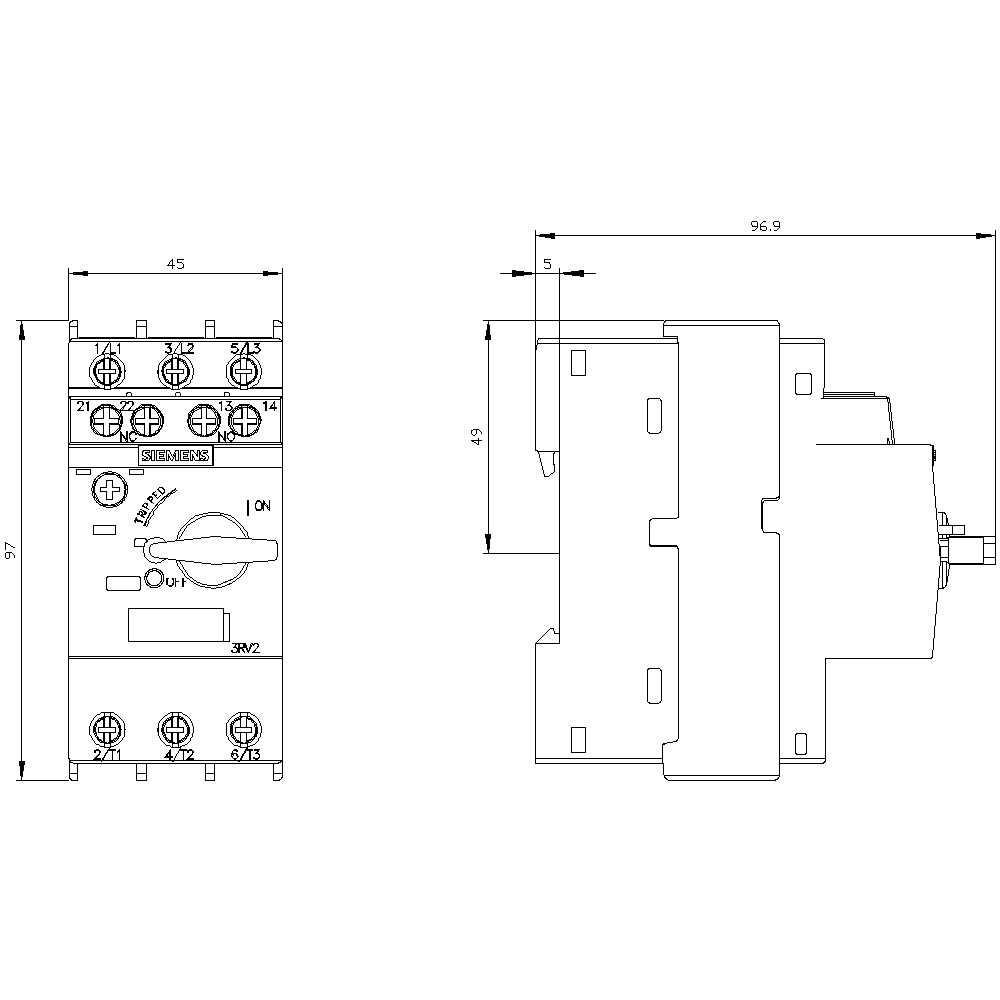

尺寸: 45 x 96.9 x 97 mm
