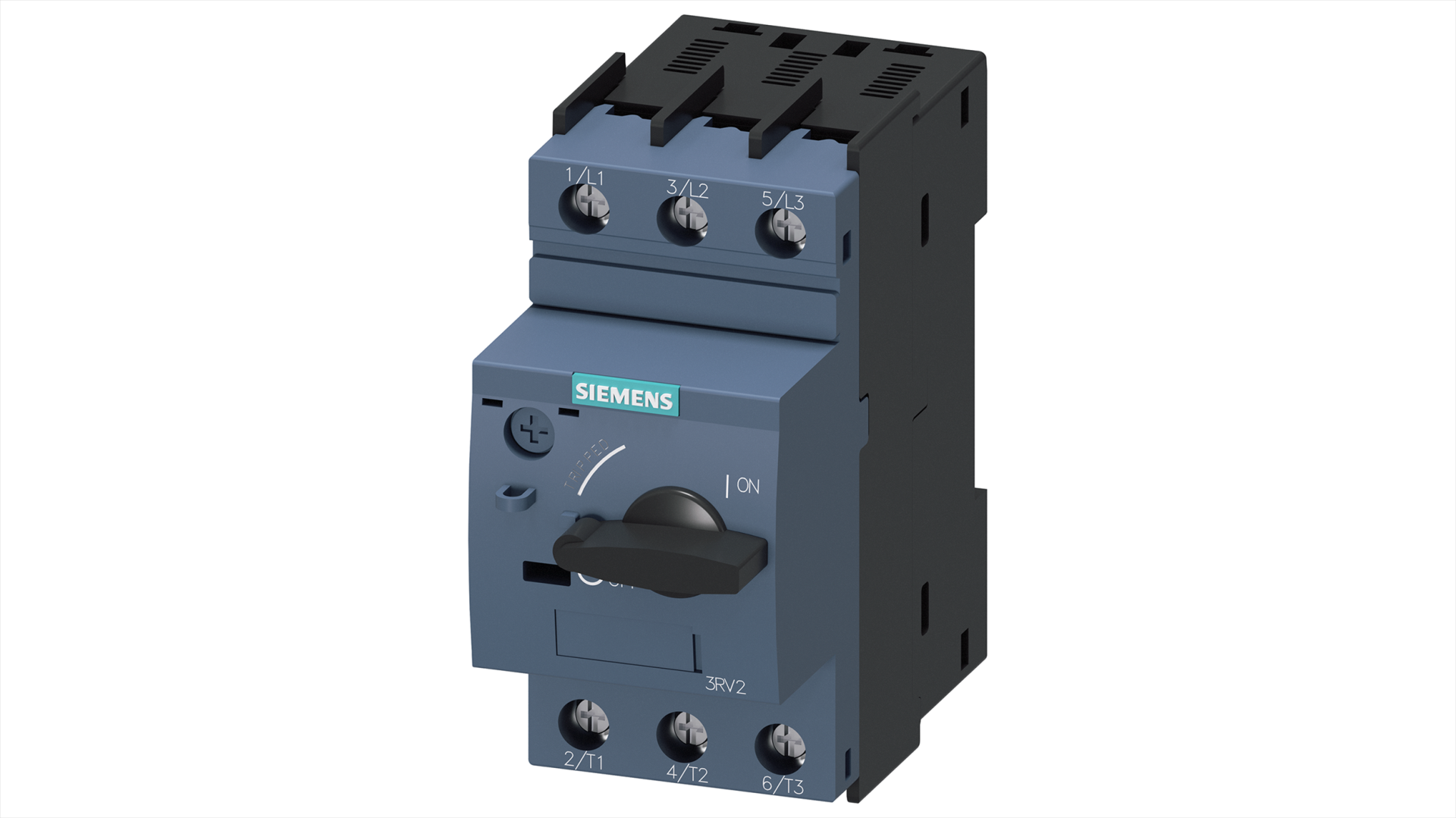

3RV2011-1BA10§Circuit breaker size S00 for motor protection, CLASS 10 A-release 1.4...2 A N-release 26 A screw terminal Standard switching capacity
極數: 3
\T電壓額定值: 690 V ac
安裝類型: DIN Rail Mount
Breaking capacity: 100 kA
Terminal contact type: Screw
Protection features: Short Circuit Protection
Tripping mechanism: Magnetic
Reset actuator type: Switchable
工作溫度範圍: -20 to +60 °C

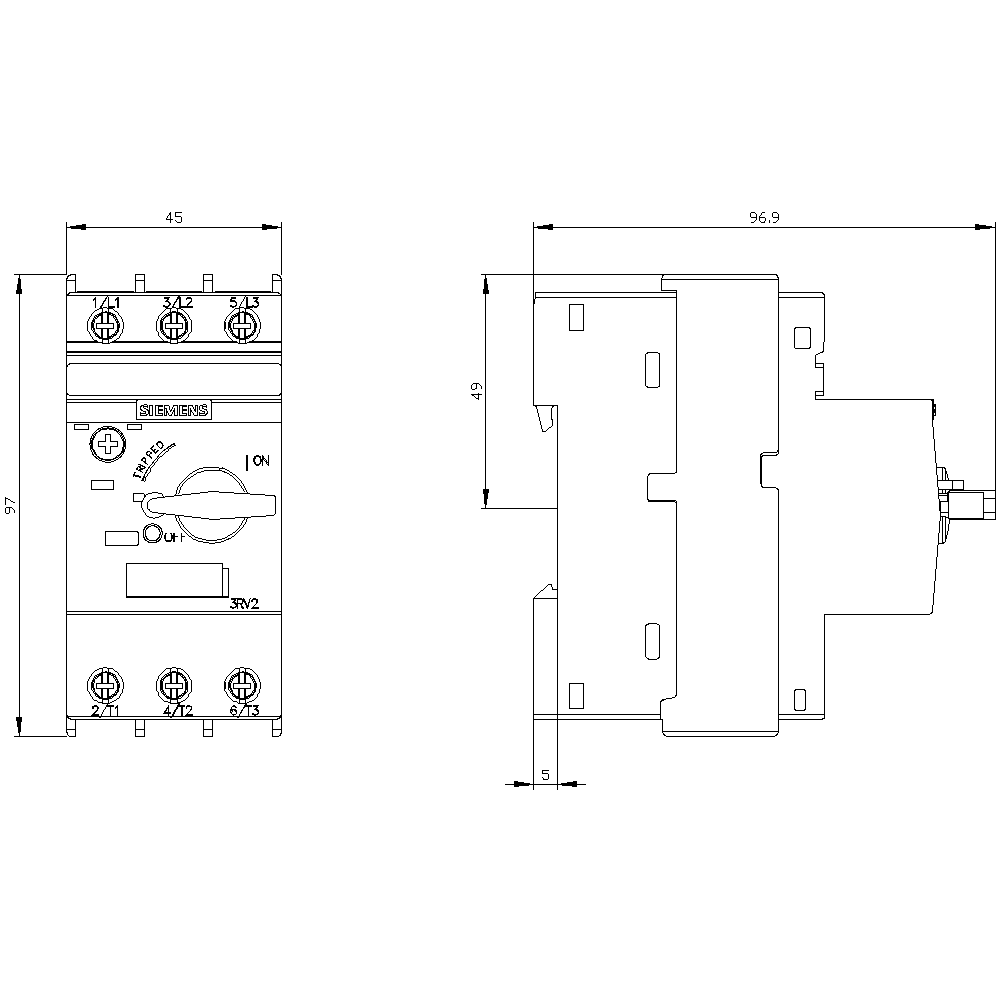

尺寸: 97 x 45 x 97 mm
