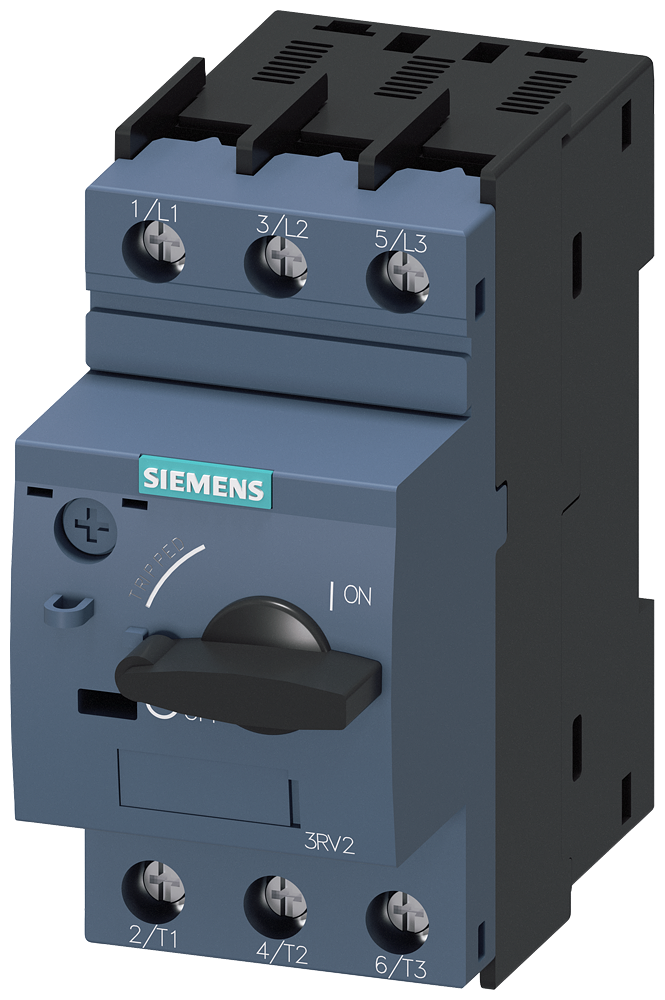

3RV2021-1AA10§Circuit breaker size S0 for motor protection, CLASS 10 A-release 1.1...1.6 A N-release 21 A screw terminal Standard switching capacity
(編號:3RV2021-1AA10)
極數: 3
\T電壓額定值: 690 V ac
安裝類型: Screw Mount;Snap On Mount;DIN Rail Mount
Breaking capacity: 100 kA @ 240 V ac;100 kA @ 400 V ac;100 kA @ 500 V ac;100 kA @ 690 V ac
Terminal contact type: Screw
Protection features: Motor Protection
Tripping mechanism: Magnetic
Reset actuator type: Auxiliary Switch
Tripping characteristics: Class 10
工作溫度範圍: -20 to +60 °C

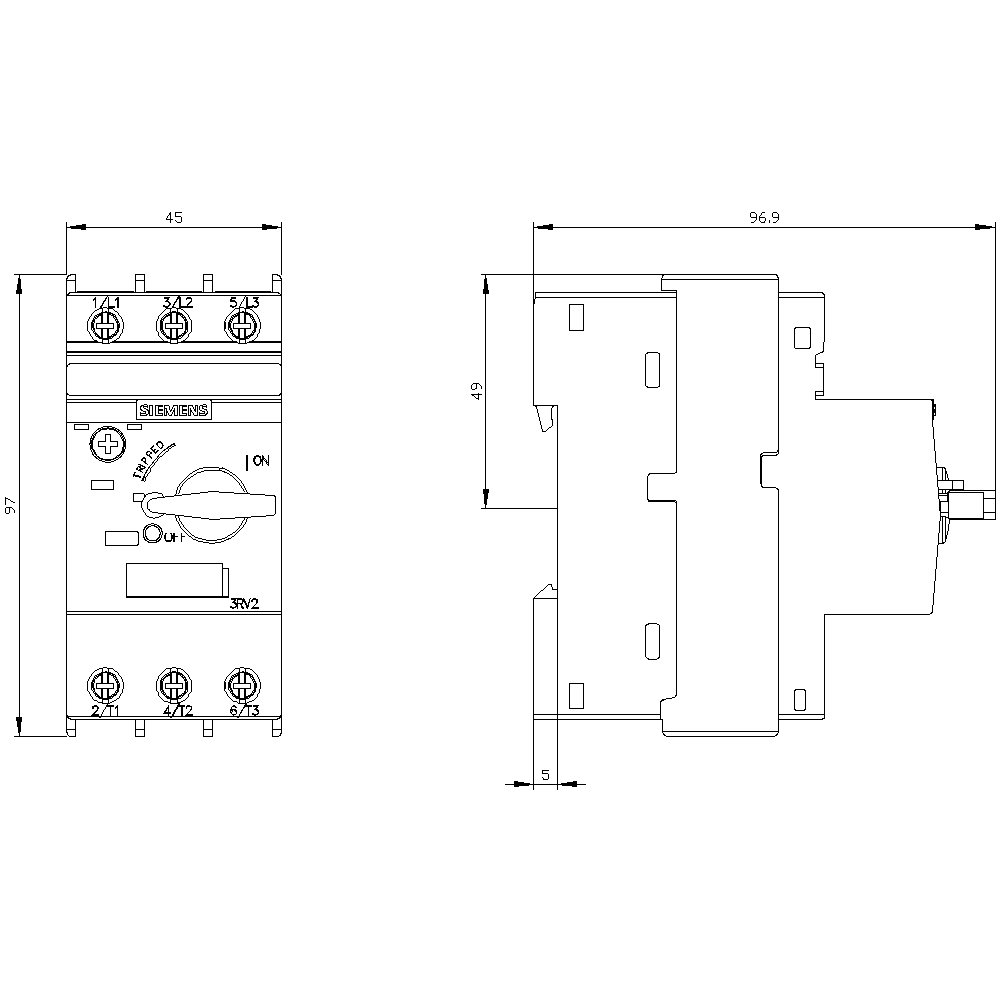

尺寸: 45 x 96.9 x 97 mm
