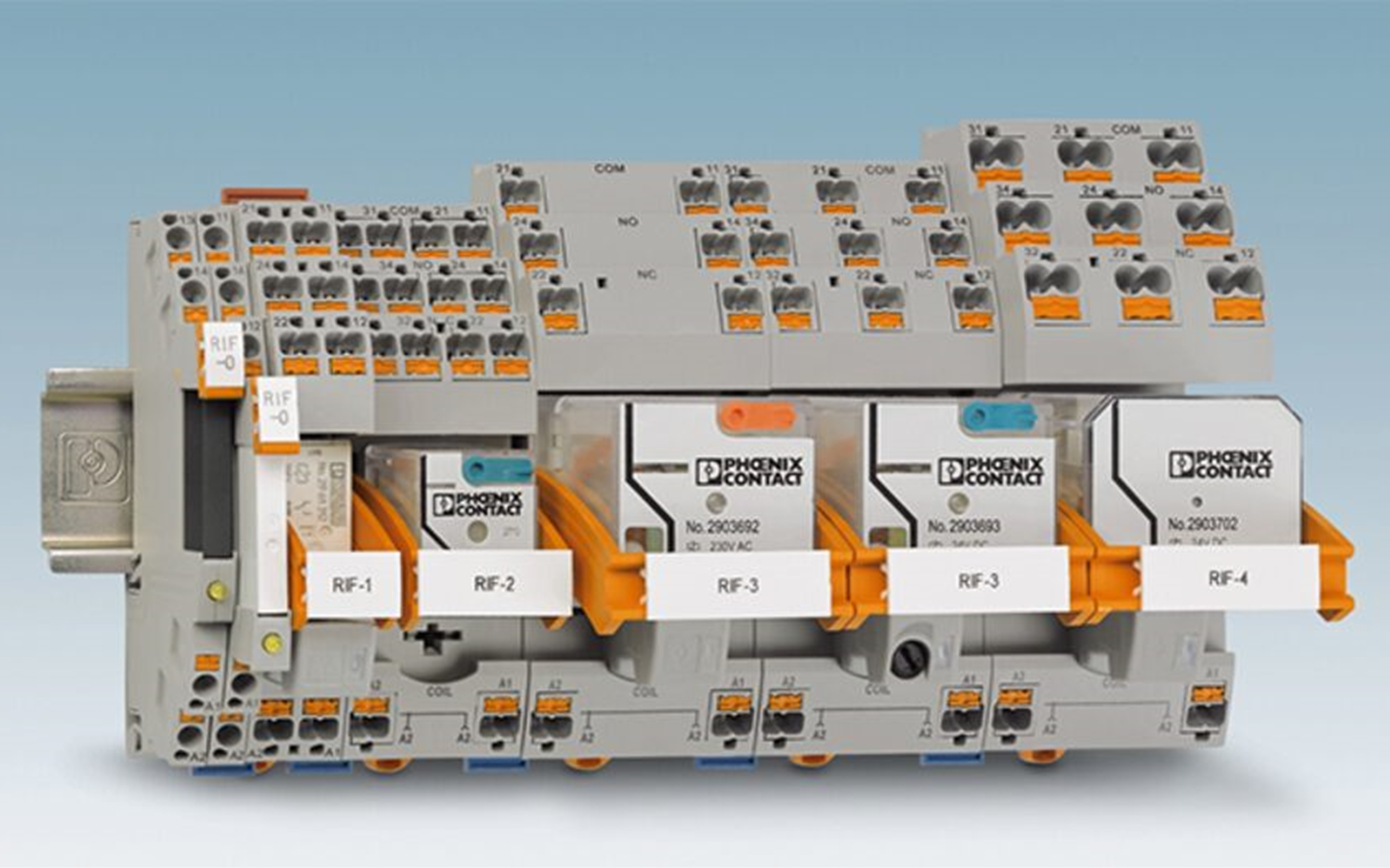

RIFLINE - Relays
Whether you want to isolate a signal or multiply or amplify it, you'll find the right product for everything from coupling and timer relays to low power contactor spare parts.
The relay system adopts a universal plug-in design, which can realize fast, simple and error-proof operation.
Advantages
• Simple and convenient operation --> modern wiring: plug-in and potential distribution concept
• Easy expansion into timer relays --> plug-in special function modules
• Complete product range covering all standard relay applications
• High system availability , more reliable operation Can be used as a complete module or modular system
Technical data
- Width: 6.2mm ~ 43mm, rail mounting
- rated voltage: up to 440Vac/ 250Vdc
- control voltage: 12Vdc, 24Vac, 24Vdc, 120Vac, 240Vac
- number of contacts: 1 NO, 1 CO ~ 4 CO, timer function
- contact capacity: up to Up to 16A
- Timer: 0.5s~100h, On-Delay, Passing make contact, Flasher unit
More info.→ RIFLINE Relay - Phoenix Contact

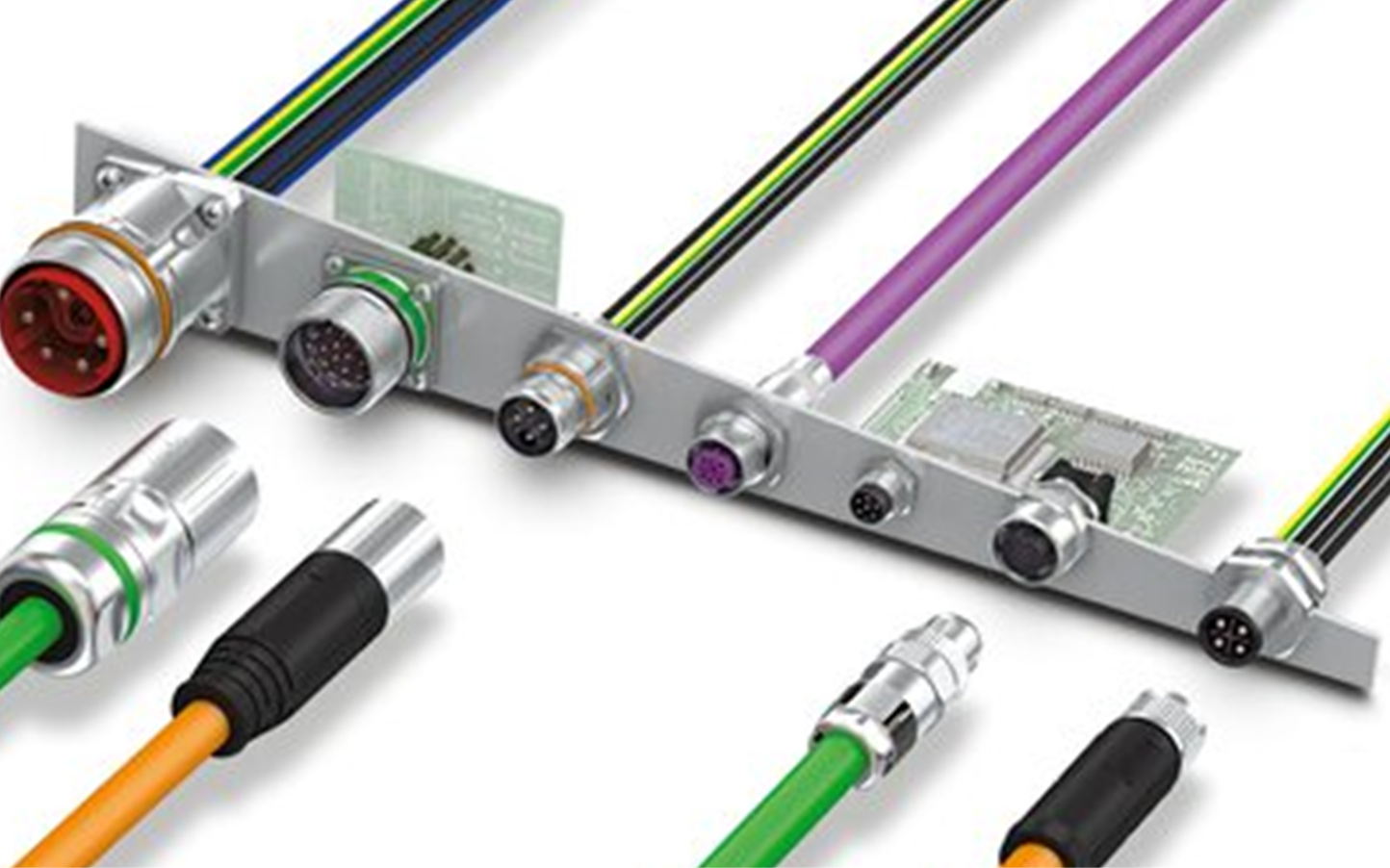

Circular connectors
Phoenix Contact offers metric circular connectors for industrial automation in a variety of designs: from small to large, straight or angled, molded or for assembly in the field. The wide-ranging portfolio offers versatile solutions for transmitting signals, data, and power.
Catagory
1. Hybrid Connectors
Save time and space when it comes to device cabling. Use our hybrid connectors to reliably transmit signals, data, and power in a single circular connector.
• Currents up to 70 A
• Voltages up to 850 V DC and 630 V AC
• CAT5 interface for data transmission
2. Signal connectors
Signal connectors in sizes from M5 to M23 are suitable for many applications. Designed to your meet your needs, 3- to 19-pos. versions are available, optionally with IDC displacement connection, screw, spring, Piercecon®, solder, crimp, and PCB connection.
• Currents up to 20 A
• Voltages up to 300 V
• Available with an optional shield connection
3. Data coonectors
For fast and reliable data transmission in industrial and infrastructure applications, we provide shielded circular connectors in sizes M8 and M12 for all common fieldbuses and networks.
• Data rates of up to 10 Gbps
• Codings for all common networks and fieldbus systems
• Components in accordance with CAT6A
• 360° shielded circular connectors and plastic molded cables
4. Power connectors
Power connectors range from compact M12 connection up to size M58 for high power levels. Take advantage of our full product range, from cable connectors, through device connectors, all the way to PCB connections.
• Powers of up to 150 A / 630 V
• Connection cross-sections up to 50 mm²
• No risk of mismatching for AC and DC applications
More info.→ Circular Connectors - Phoenix Contact

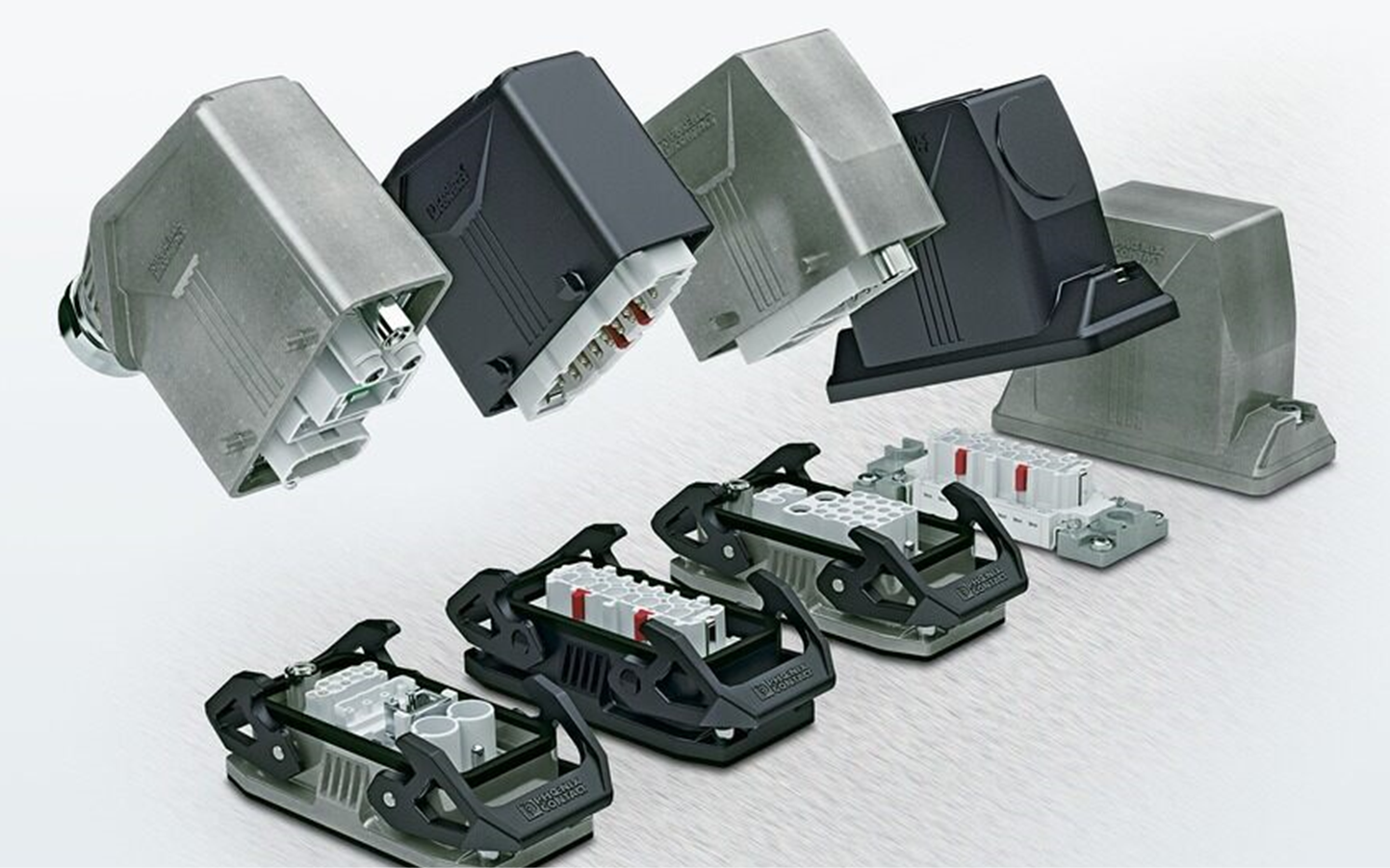

重載連接器 HEAVYCON
Industrial connectors from the HEAVYCON complete series protect your interfaces and ensure the reliable transmission of power, data, and signals even under the harshest conditions. The industrial connectors are resistant to dirt, water, vibrations, and high levels of mechanical strain. The heavy-duty connectors have a seal rating of up to IP69K.
Advantages
- Always the right plug-in connection for your requirements with three different series types
- Compatible connection: Housings are mounting and plug-in compatible with aluminum housings from well-known manufacturers
- Flexible combination: Variable connection technologies for contact inserts and terminal adapters
- Everything in one housing: Simply snap modular contact inserts for signals, data, power, and pneumatics onto the snap-in frame and mount them in the housing
- Reliable interfaces: All metal housings are EMC-ready with conductive surfaces and seals
More info.→ Heavy-duty connectors
