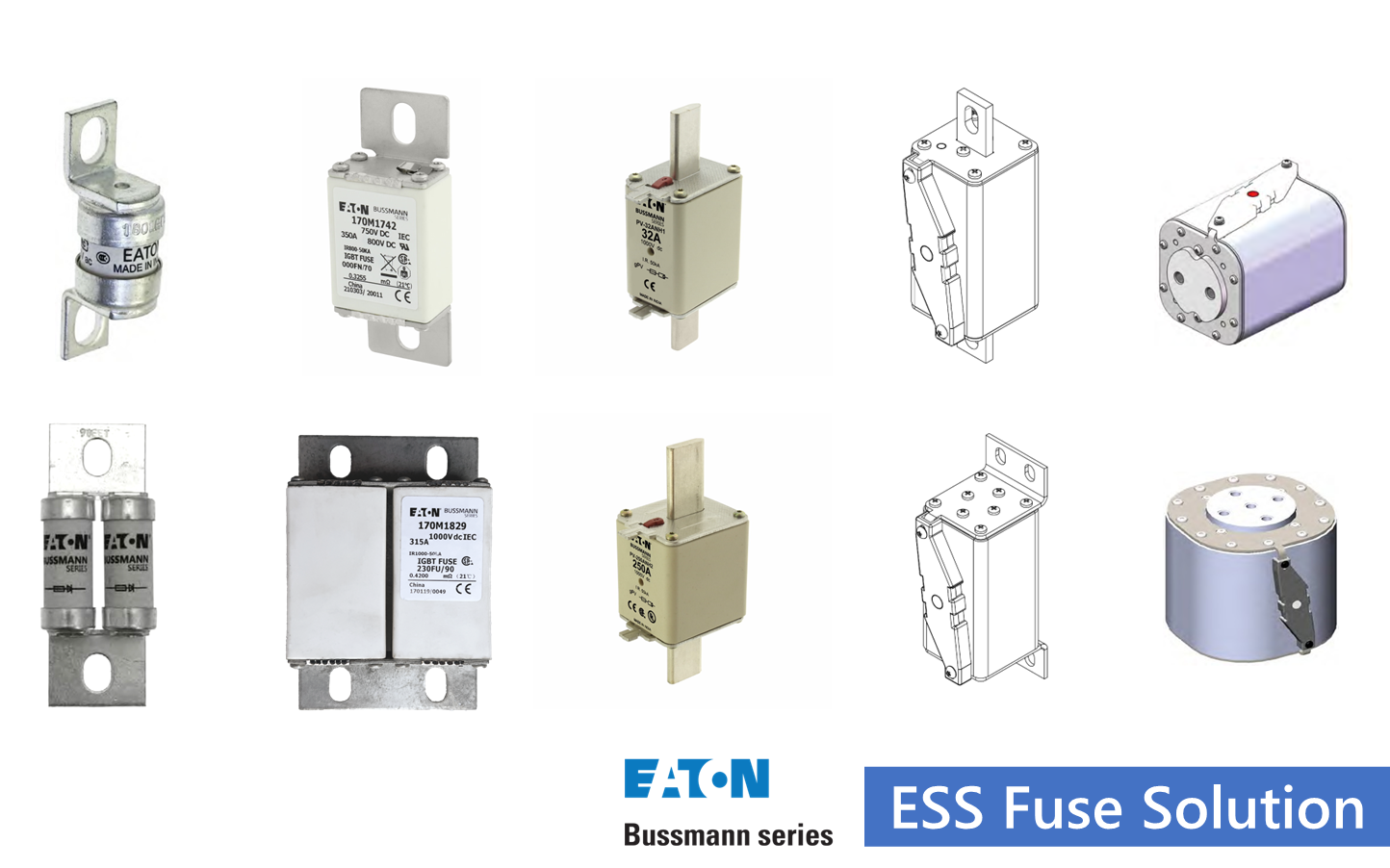

Fuse for Energy Storage System - ESS Fuse Solution 2022

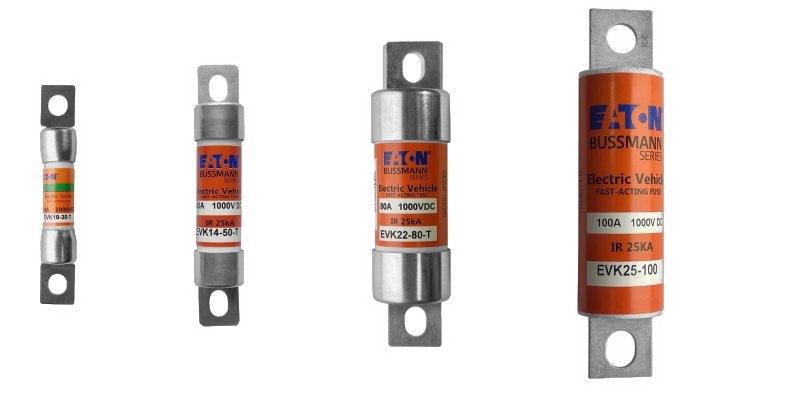

Electric Vehicle Fuses - EVK series (1000 Vdc, 15-600A)

EVK series (1000 Vdc, 15-600A)

Eaton’s Bussmann series Electric Vehicle (EV) full range fuses for the protection of high power and auxiliary electrical systems up to 1000 Vdc in ratings from 15 to 600 amps.

Technical data

• Volts: 1000 Vdc
• Amps: 15-600 A
• Interrupting rating: Max 25kA
• Time constant: 2±0.5ms
• Ambient temperature: -40 ~ 125ºC

More info. -> Electric Vehicle power fuses - EVK series

Eaton Bussmann - gR Cylindrical High Speed Fuse

Eaton Bussmann Cylindrical gR Semiconductor Fuses are suitable for applications requiring high-speed interruption. Cylindrical gR fuses have a faster fusing time than ordinary gG fuses, and they are generally used to protect power supplies, CNC controllers, inverters, SCR and other semiconductor components.

Technical data

• Protection level: gR
• Dimensions: 10x38, 14x51, 22x58
• Rated voltage: 690Vac/500Vdc
• Rated current: 4~100A*
• Short circuit capacity: 200kA ac/50kA dc
• Certification: UL, IEC

*Above 100A, blade type gR fuse can be selected

*The fuse holder can be Eaton Bussmann or SIEMENS products
